Upgrade your daikin.
Go Industrial!
A smart retrofit module that gives your Daikin unit industrial-grade connectivity

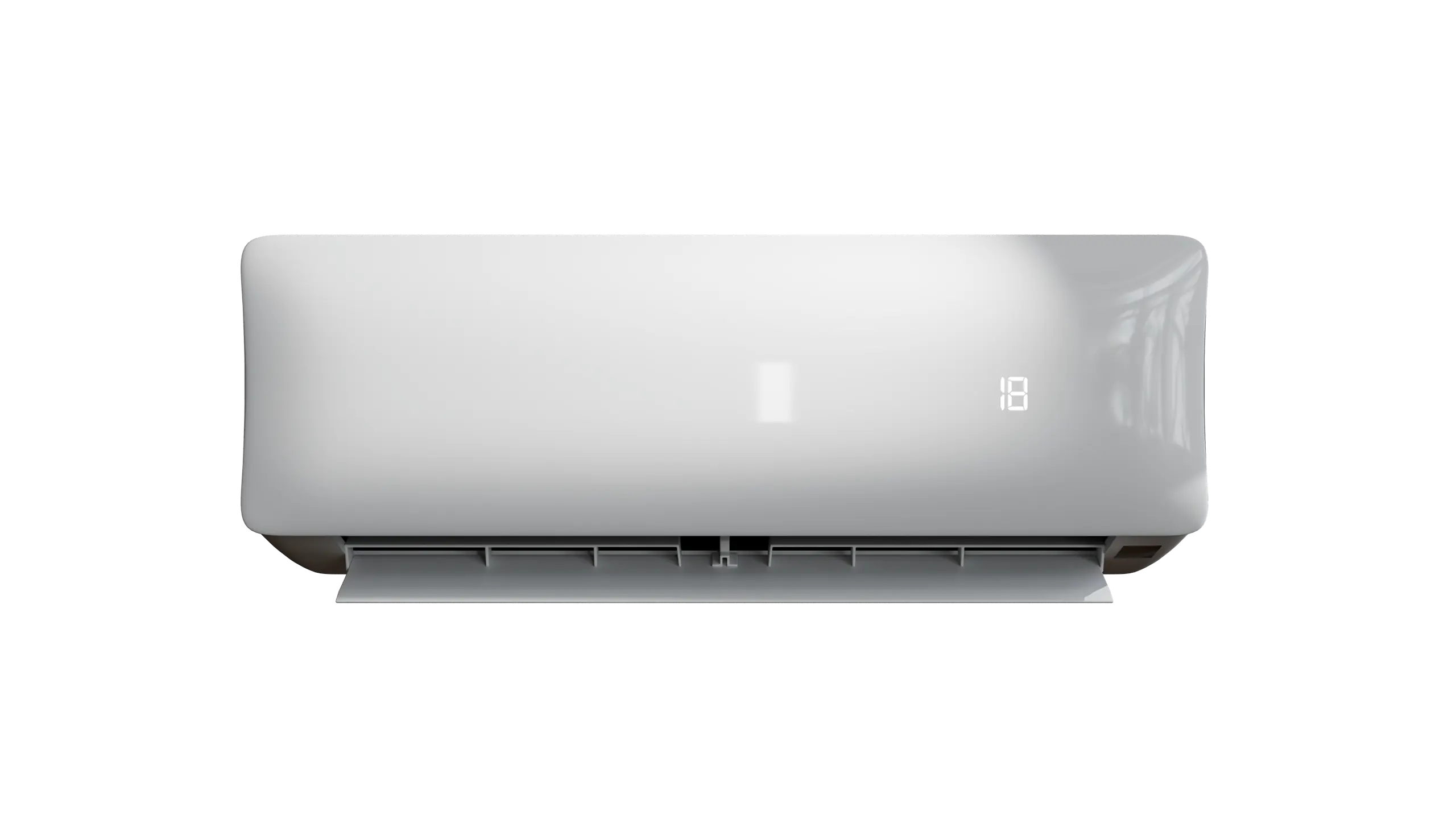

By default, Daikin doesn't speak industrial protocols
- SNMP v2/v3 ✕
- Modbus TCP ✕
- HTTP/S ✕
- S21 ✓

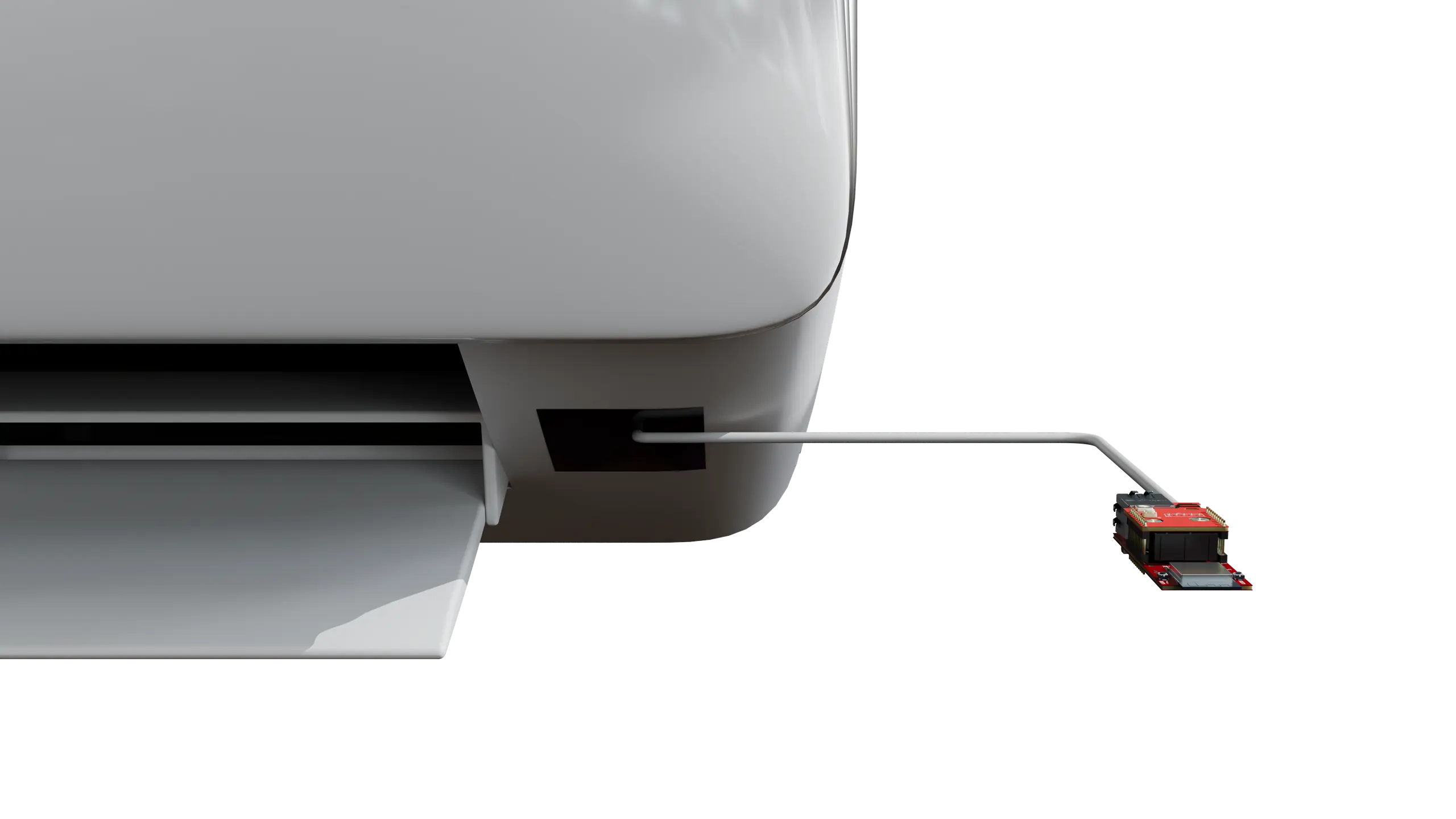

Snap in the KlimaNET module
No rewiring, it plugs straight into the unit's service port.

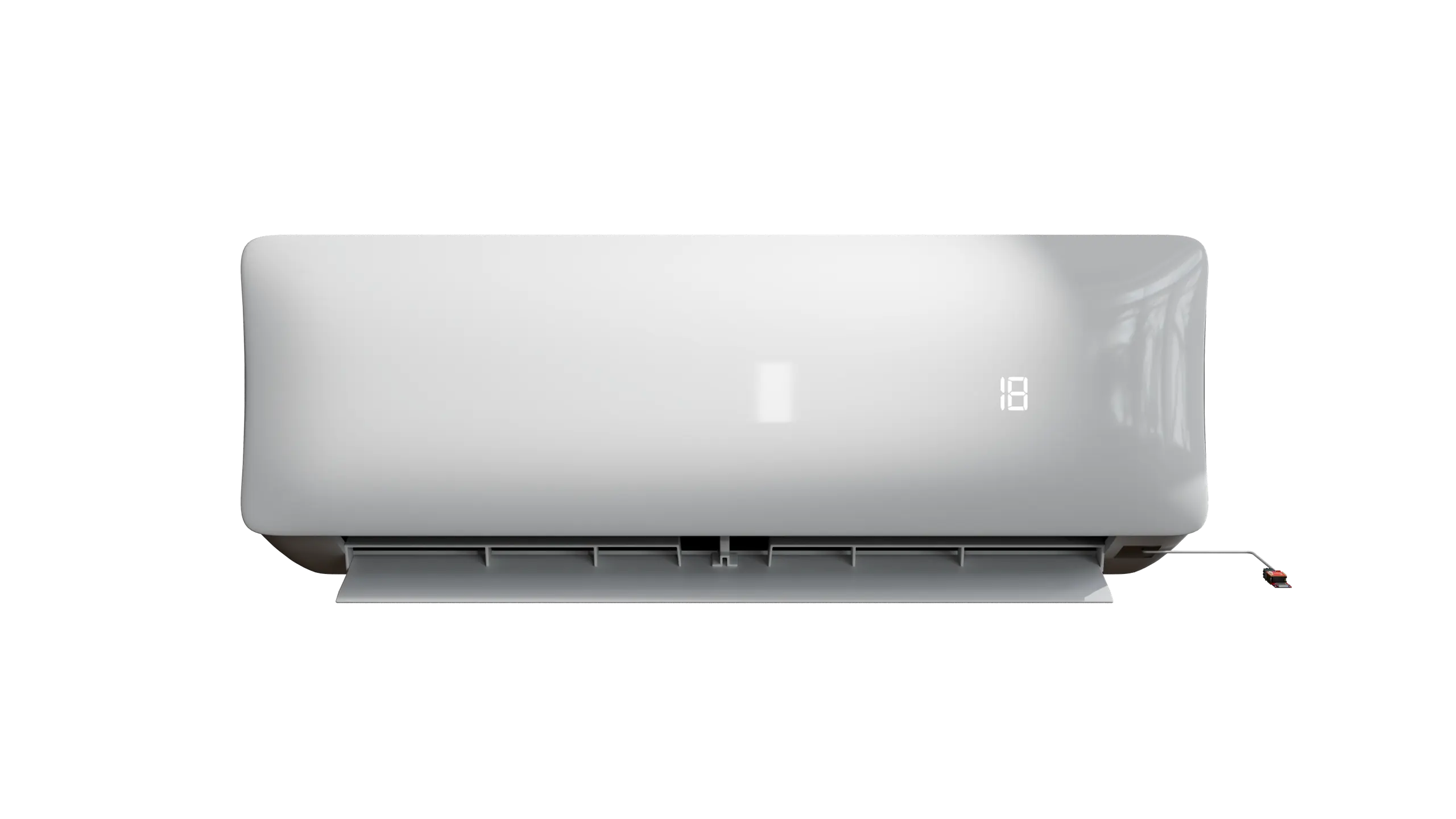

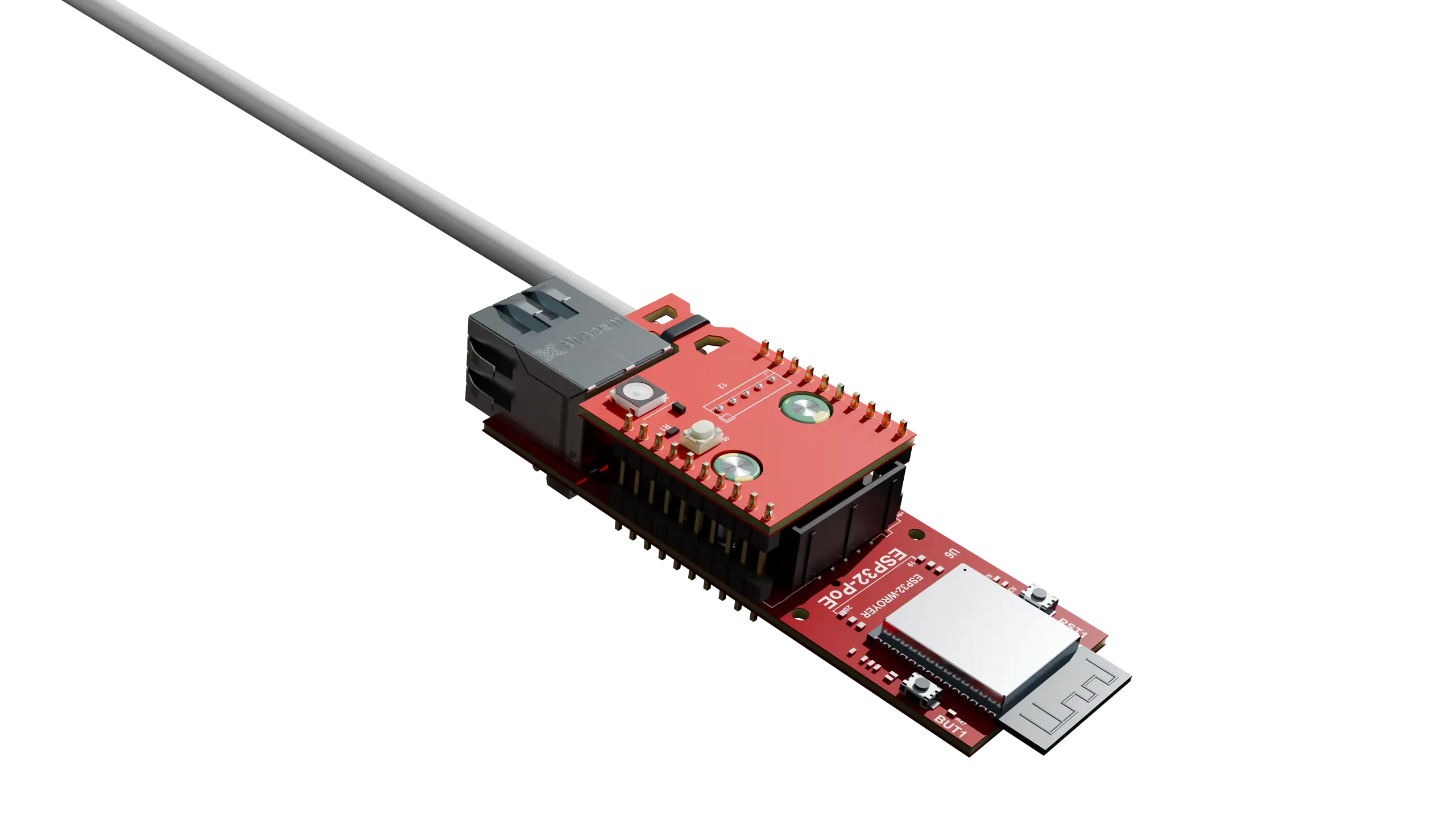

Now your Daikin speaks them all
- SNMP v2/v3 ✓
- Modbus TCP ✓
- HTTP/S ✓
- S21 ✓
Runs entirely on your network
No cloud, no external servers. All data stays on-premise, fully under your control.
Fine-grained access control
Built-in user management lets you assign roles and restrict access to individual modules right out of the box.

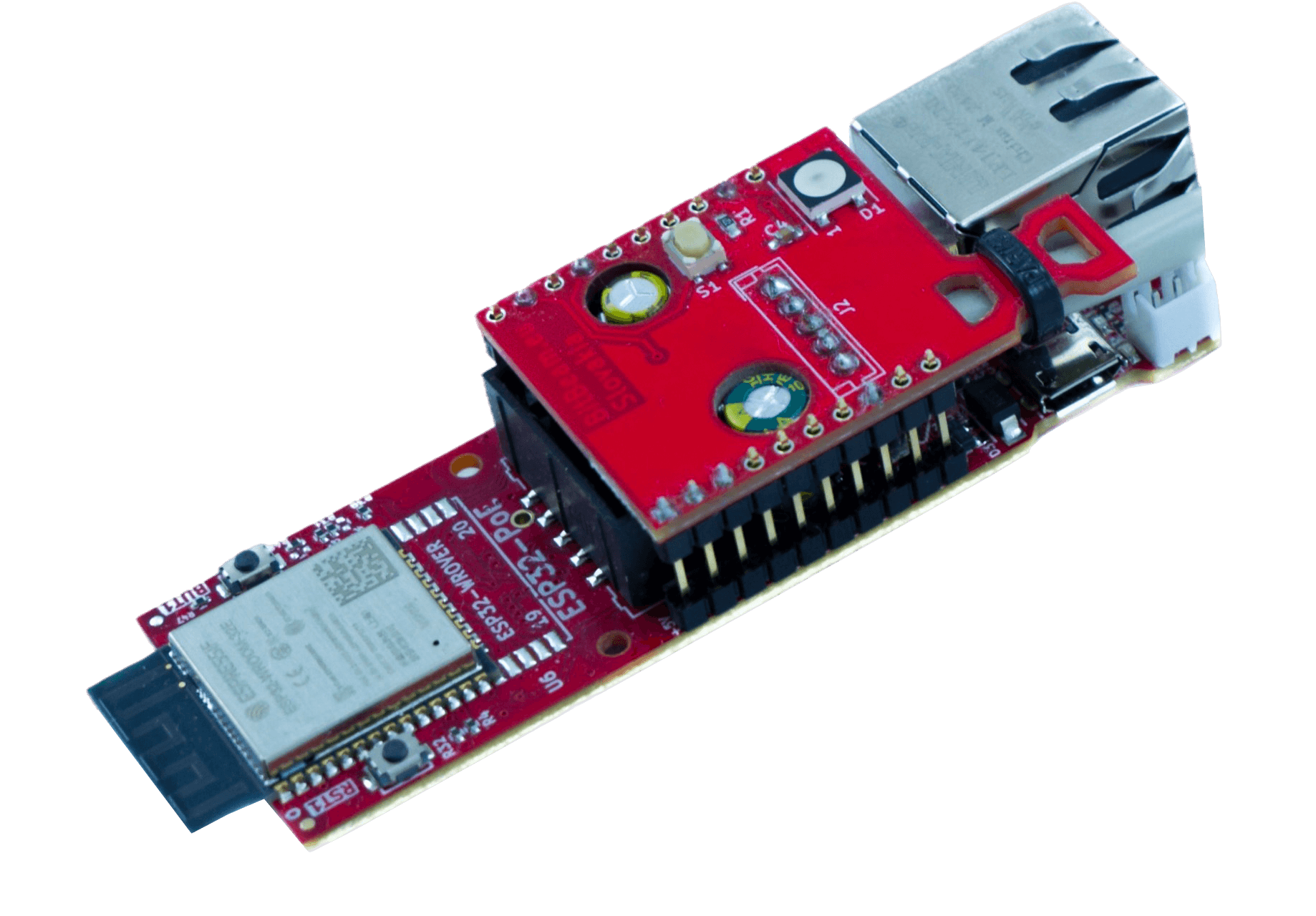

Why KlimaNET
A single retrofit module that turns any Daikin unit into a fully connected, enterprise-ready endpoint.
Industrial protocols
SNMP v2c/v3, Modbus TCP, and HTTP/HTTPS. Integrate your Daikin units with SCADA, BMS, or any IT monitoring system without proprietary middleware.
100 % on-premise
No vendor cloud, no external servers. All communication stays on your local network.
Access control & user roles
Built-in user management lets you assign roles and restrict access to individual modules right out of the box.
Fits inside your AC unit
Small enough to mount directly inside the Daikin indoor unit. Connects via the S21 port and draws power from it. No separate PSU, no extra wiring.
Easy setup with built-in UI
Configure protocols, users, and network settings through a user-friendly web interface accessible from any browser on your network.
User-controlled OTA updates
Upload firmware through the built-in web UI whenever you choose. If an update fails, the device automatically rolls back to the previous working version.
Technical specs
Everything you need to know before installing.
Weight:
55 g
Dimensions:
20 mm (height) x 31 mm
(width) x 95 mm (length)
Connectivity:
DAIKIN S21,
Ethernet 100/10 over RJ45
Working temperature:
0°C - 70°C
Power Supply:
Powered via S21 connection
Package Contents:
Klimanet device,
S21 connection cable,
Installation manual
Team behind KlimaNET
Three companies work together to deliver KlimaNET from engineering to distribution.
BitBeam group s.r.o.
bitbeam.euDevelopment & manufacturing
Designs the KlimaNET hardware and firmware, and handles production quality and delivery readiness.
itsmart s.r.o.
itsmart.skVerification of development process and testing
Validates reliability, and coordinates test cycles before each release.
Coltburg s.r.o.
coltburg.skDistribution
Manages channel distribution, logistics, and partner availability across target markets.
